Basalt fiber Composite Rebar
Our products are widely used in municipal sanitation, domestic waste treatment, special-purpose vehicles, rubber and plastics, metallurgy, military industry, marine engineering, agricultural machinery, textiles, electric power chemicals, engineering machinery, forging machinery, casting machinery, machine tools and other industries.
- Describe
-
Basalt fiber roving as the main raw material,combined with epoxy resin(ER),vinyl resin(VR),unsaturated polyester(UPE)and other resins and fillers
APPLICATION
Seismic observation stations,harbour wharf protection works and buildings,subway stations,bridges,nonmagnetic or electromagnetic concrete buildings;Prestressed concrete highway,anti-corrosion chemical industry,floor slab,chemical storage tank,underground engineering;Magnetic resonance imaging facility foundation,communication building,electronic equipment factory building;Concrete slabs for guide rails of nuclear fusion buildings and maglev railways:Telecom transmission tower,TV station bracket,optical fiber and cable strengthening core.
FORMING PROCESS
Basalt fiber roving as the main raw material,combined with epoxy resin(ER),vinyl resin(VR),unsaturated polyester(UPE)and other resins and fillers,curing agents,substrates,through thermoforming die,the basalt fiber bar is extruded under a certain tension with impregnated untwisted roving bundle.

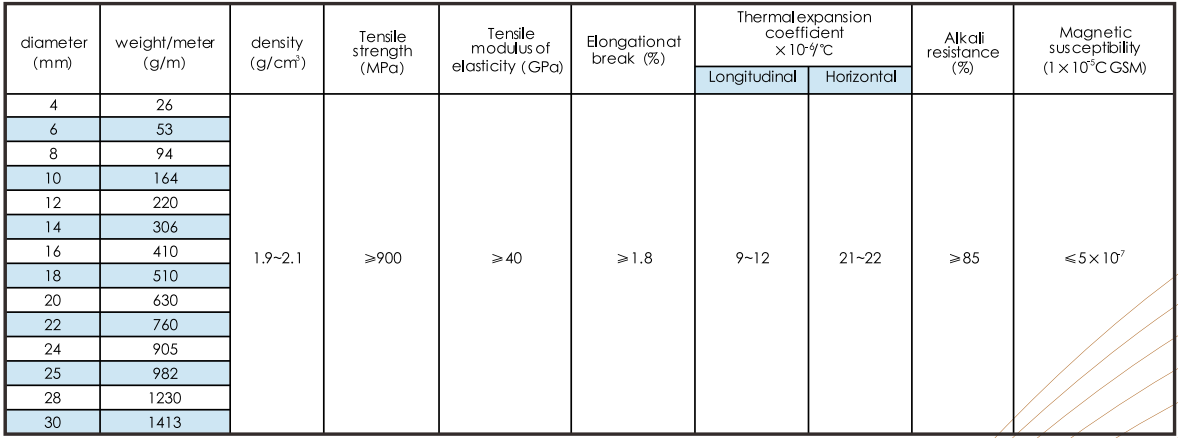

SPECIFICATIONS AND PERFORMANCE
PRODUCT ADVANTAGE
The tensile strength is high,which is more than 3 times that of ordinary steel bars of the same specification.Excellent corrosion resistance(unmatched by any other fiber product).The density of fiber composite bars is only 2.0g/cm3,1/4 of that of ordinary steel bars.The thermal expansion coefficient of filber composite bars is similar to that of concrete,and there is no_ large thermal stress between them.Standard bends and other shapes can be prefabricated.Environmental prote ction:for every ton of basalt fiber composite bars used,the carbon emissions of 5.24tce of standard coal can be saved.
Keywords:- Basalt fiber
