Basalt fiber CLOTH
Our products are widely used in municipal sanitation, domestic waste treatment, special-purpose vehicles, rubber and plastics, metallurgy, military industry, marine engineering, agricultural machinery, textiles, electric power chemicals, engineering machinery, forging machinery, casting machinery, machine tools and other industries.
- Describe
-
used in bridge construction,wind turbine blades,boats,automobiles,sports equipment and other fields.
used in bridge construction,wind turbine blades,boats,automobiles,sports equipment and other fields.
DESCRIPTION
The basalt fiber cloth of our company adopts iwisted or uniwisted basalt continuous fibers as raw materials,and is woven with plain,iwill and satin weaves.Divided into unidirectional cloth,bidirectional cloth and multi-directional cloth.Relying on the temperature resistance,corrosion resistance,high strength and modulus,and electrical insulation of basalt fiber,it is processed by hand lay-up,pultrusion,autoclave,vacuum introduction,winding,resin transfer and other processes,combined with unsaturated polyester resin(UP)or epoxy resin(EP).
FEATURES
high temperature resistance,corrosion resistance,excellent physical and chemical properties;high strength,small thickness,good flexibility;parallel and straightening yarn,excellent mechanical propertiesjmore direction mechanical performance can design according to the actual need freedom enhancement effect.

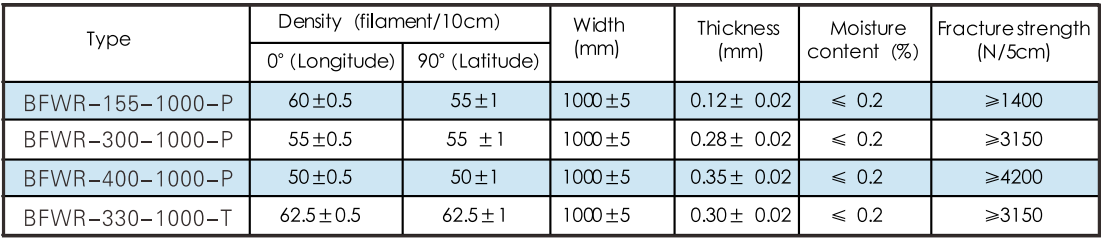

TECHNICAL SPECIFICATIONS
Storage:It should be stored in a dry and cool place with recommended temperature of 15-35t and relative humidity of 30-70%.Please do not open the package unless you not use if,avoid moisture.
PACKAGING INFORMATION
Requirements for paper spindles:
1.Strength requirement of paper shaft:capable of carrying 50kg.2.Both ends of the paper shaft are required:a small hole at one end and a U-shaped slot at the other end to fix the paper shaft.3.The size requirements of the paper shaft:long*diameter outer warp*inner diameter mm,(L:workshop requirements±1)*(∮110±1)*(∮100+l/-0mm).
Requirements for plastic bags:
1.Size requirements:length*width mm:(1500*500)mm.
2.Strength requirements:10s in thickness
Carton requirements:
1.Strength requirements of cartons:capable of carrying 50kg.2.lntemal size requirements of cartons:length*width*height:1090*230*230mm.3.Extemal size requirements:length*width*height:1100*2350*232mm.
Requirements for paper liners:
Paper liner size requirements:length*width*thickness:225*225*40mm,medium hole diameter 110mm
Keywords:- Basalt fiber
